LED Module

AST-M902TB

$1.20

  • Back lit solution for 80~200mm depth light boxes & letter signs
  • Price does not include GST & postage

ADVANTAGES

  • 5 years warranty*
  • Long life & low attenuation 2835 SMD LED
  • Superior luminous efficiency—97lm/W (white), 70lm/module
  • 160degree wide beam angle renders great illumination uniformity
  • Constant current driving technology delivers stable & reliable lighting result
  • IP65 over-moulded design suitable for outdoor sign applications
  • White, red, yellow, green & blue light colours available
  • UL, CE & RoHS compliant

* 5 years or 22,000 hours, whichever comes first
* Working within operating temperature range

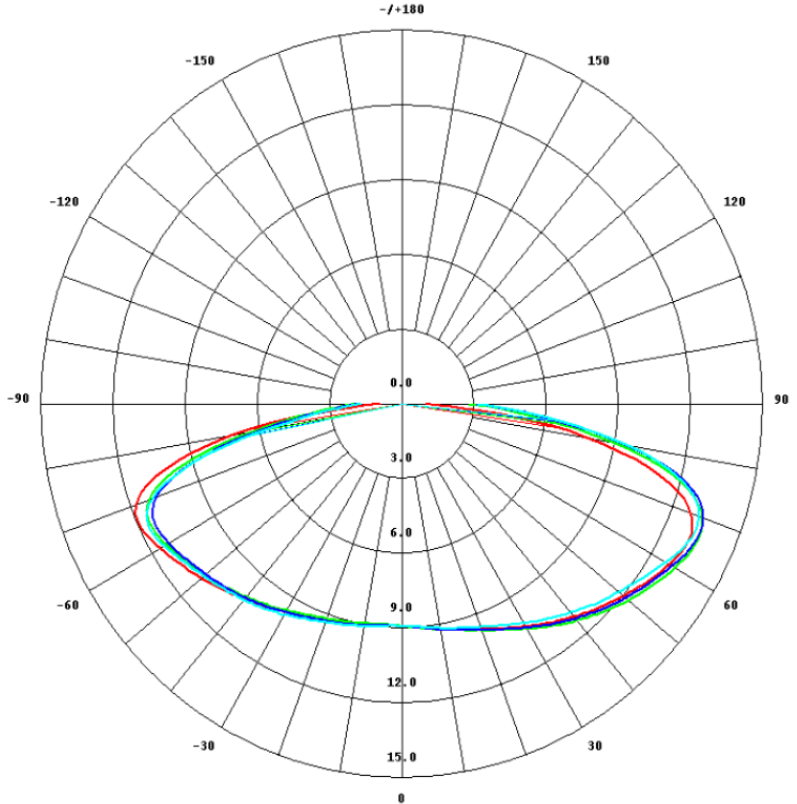

LIGHT DISTRIBUTION

ast-902tb light distribution

INSTALLATION

  • Max. 25 modules per string one end feed OR max. 50 modules per string both ends feed
  • Easy installation with 3M self-adhesive tape, screw fixed if needed
  • Single module cuttable

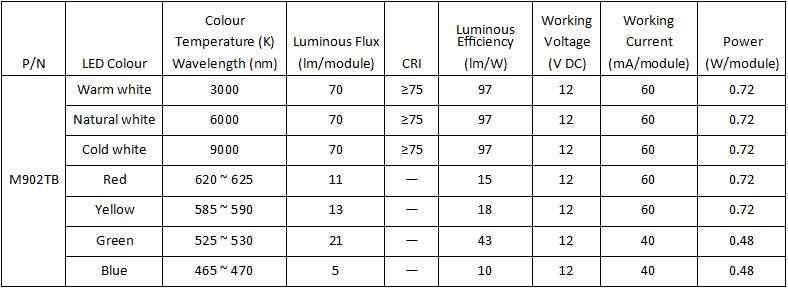

PRODUCT OPTIONS

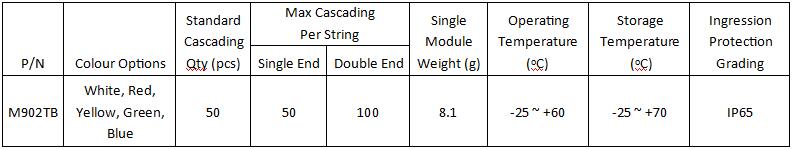

OTHERS

ast-902tb others

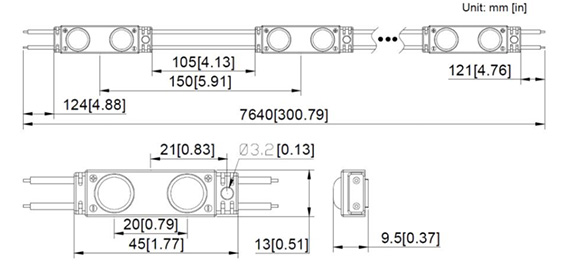

PRODUCT PROFILE
