LED Module

AST-M903TB

$1.38

  • Back lit solution for 80~200mm depth light box / letter sign
  • Price does no include GST & postage

ADVANTAGES

  • 5 years warranty*
  • Long life & low attenuation 2835 SMD LED
  • Superior luminous efficiency - 81lm/W (white), 97lm/module
  • 160 degree wide beam angle renders great illumination uniformity
  • Constant current driving technology delivers stable & reliable lighting result
  • IP65 over-moulded design suitable for outdoor sign applications
  • White, red, yellow, green & blue light colours available
  • UL, CE & RoHS compliant

* 5 years or 22,000 hours, whichever comes first
* Working within operating temperature range

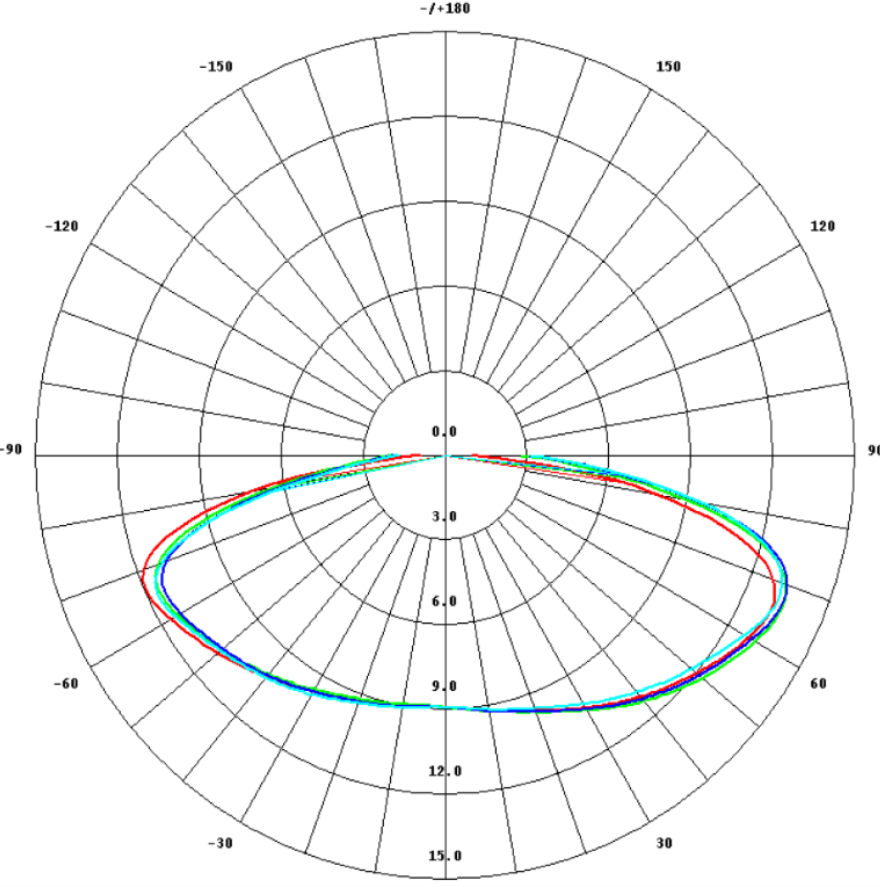

LIGHT DISTRIBUTION

ast-m903tb light profile

INSTALLATION

  • Single module cuttable
  • Max. 25 modules per string one end feed OR max. 50 modules per string both ends feed
  • Easy installation with 3M self-adhesive tape, silicon or screw fix

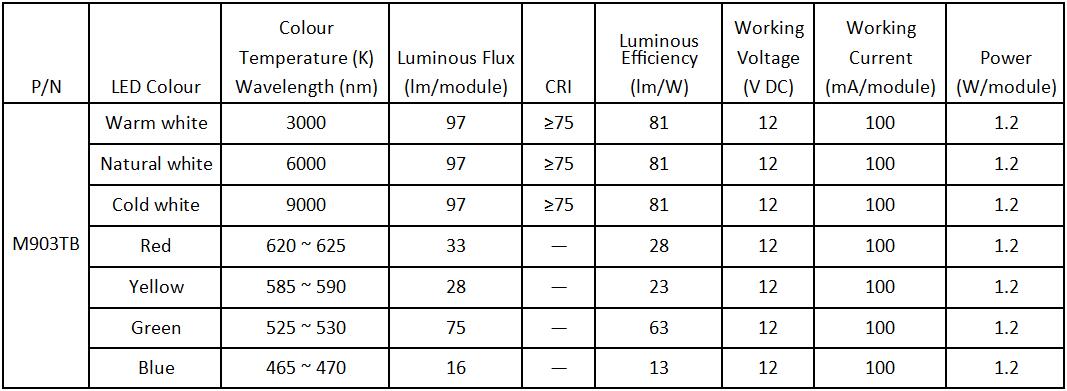

PRODUCT OPTIONS

ast-m903tb product options

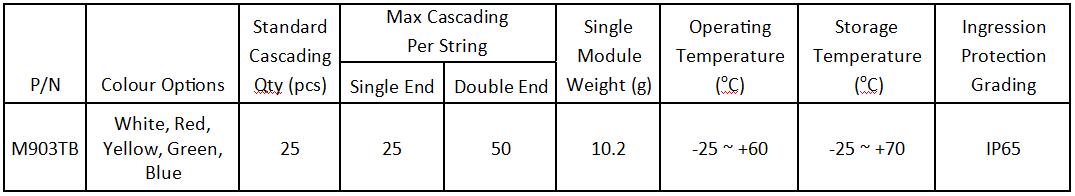

OTHERS

ast-903tb others

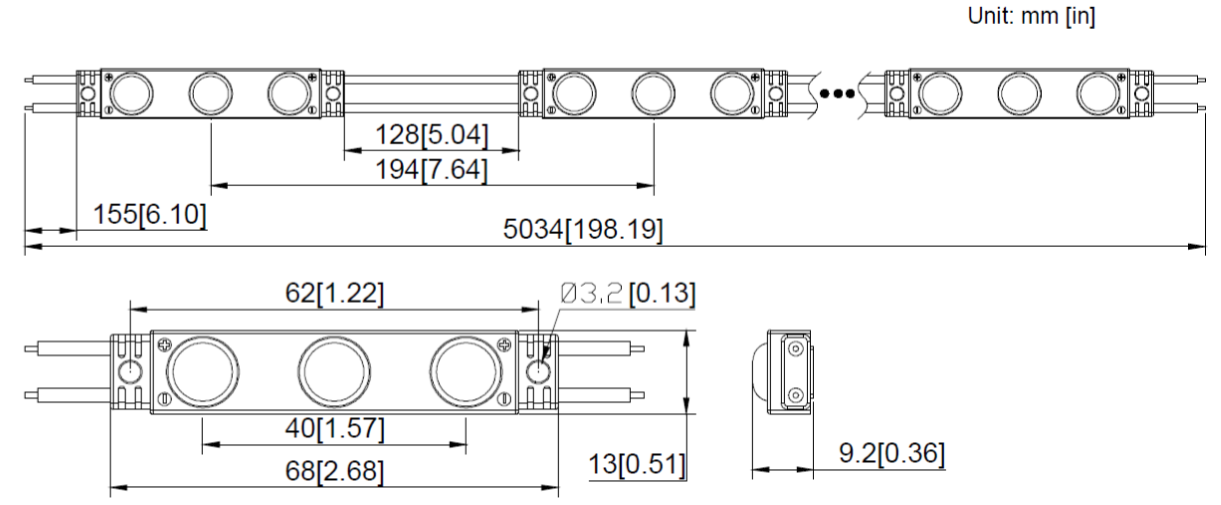

PRODUCT PROFILE

ast-903tb product profile
